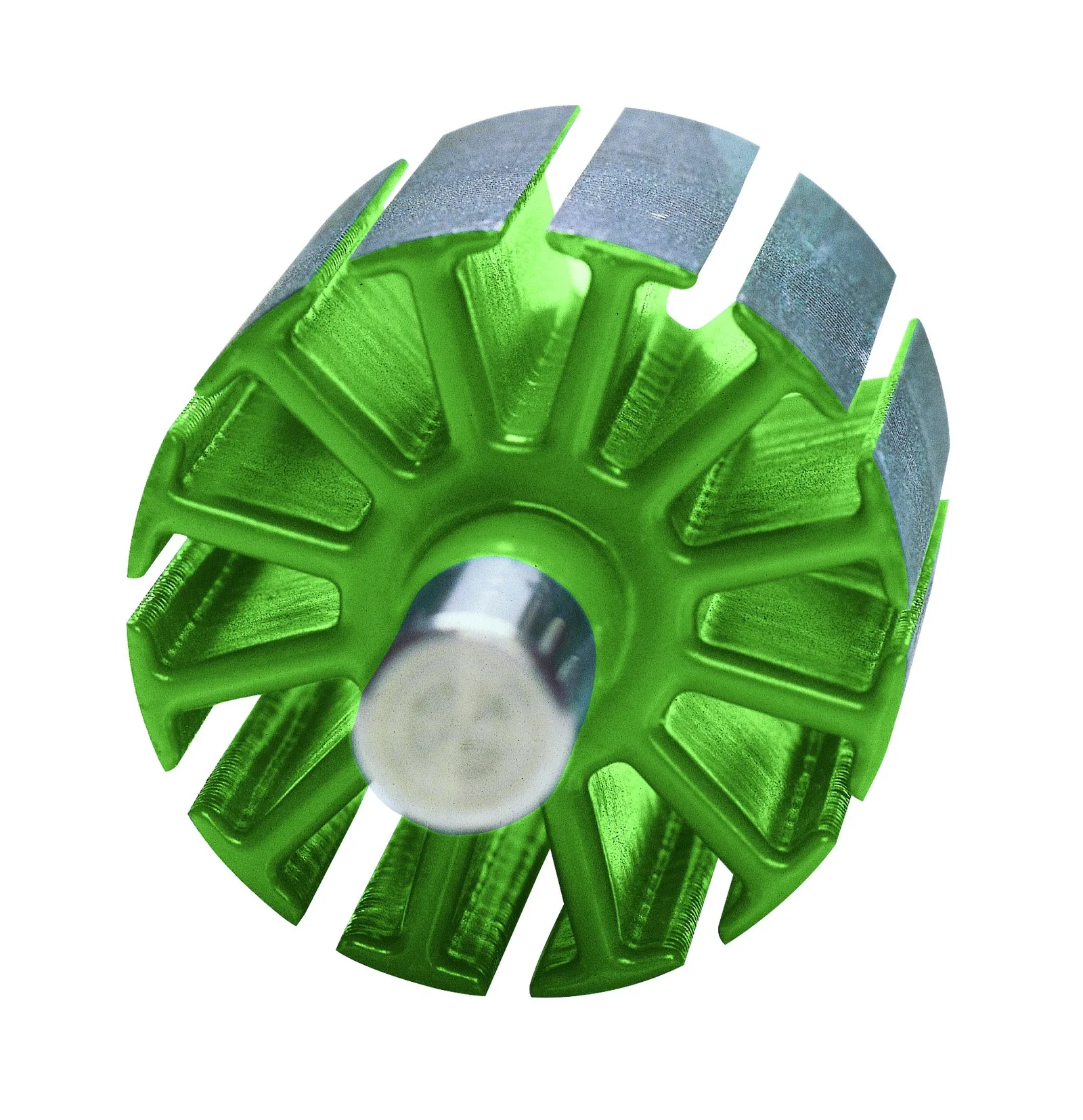

3M™ Scotchcast™ Electrical Powder Resin 260 is a widely used, well-known general purpose epoxy powder resin. A one-part, green pigmented, rapid heat-curing product, it is designed to provide a continuous, tough, moisture and chemical resistant dielectric coating to a variety of substrates. It is manufactured by a fusion blend process, insuring that each individual particle of powder contains all the components necessary to effect a complete cure and attain stated performance properties. Resin 260 is applied to an object that has been heated to a temperature above the melting point of the resin. On contact with the preheated application surface, the resin melts, flows to a controlled extent, then cures, bonding to the substrate and coalescing into a smooth, continuous, essentially uniform, thick coating. It effectively coats flat surfaces and corners, as well as, high points. Uses for resin 260 include moisture-proofing and insulating armatures, stators, buss bars and toroid cores.
- Electrostatic fluid bed
- Electrostatic spray
- Motor bus bar
- Transformer core
- Bus bar
- UL Listed, EIS Approved and RoHS 2011/65/EU Compliant
